Integrated Photocell Door Sensor Full Height 19mm Thickness 2000MM Length

Name: Integrated Photocell Door Sensor Full Height 19mm Thickness 2000MM Length
Brand: WECO
Price: 1 USD

Brand Name : WECO

Model Number : WECO-917 / 957G

Certification : CE CSA CCC

Place of Origin : CHINA

MOQ : 10SETS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1400000SETS/Year

Delivery Time : 5-8 Workdays

Packaging Details : 5sets in a bundles, pallet avaliable

Voltage : AC220V, AC110V, DC24V

Catagory : Elevator Spare parts, Light Curtain

Lengtht : 2000MM

Feature : WECO-957R71-AC220-F-2100mm Hangzhou XO

Product Name : Infrared Light Barrier

Warranty : 12Months

Contact Now

Integrated Photocell Door Sensor Full Height 19mm Thickness 2000MM Length

WECO-917/ 957R model Lift Door Sensor is a new development model in past few years as per Hitachi elevator company requirement.This model also can be installed on any type elevator.

About this model the constructure is similiar as 917K model but with 19mm thickness. So it is flexible to set the mounting holes as per youer indeed. As you may see there often WECO-957R71-AC220-F-2100mm model on Hangzhou XO's elevators.

As below chart shows, you can see, the scanning beams is choosable for WECO elevator door sensor.

Technical Features		957R6	957R7	957R8	957R9
Number of infra red diodes		17diodes	32diodes	40diodes	48diodes
Response time	relay output	45ms	61ms	69ms	77ms
	transistor output	21ms	37ms	45ms	53ms
Scanning Bema		94~33beams	154~94 beams	194~118beams	234~142beams
Detecting Height		20~1841mm
Detecting range		0~4m
Operating Temperature		-20℃~+65℃
Light immunity		sunlightproof
Redundancy		NO	YES	NO
Led Interpretation		The yellow LED and red LED in receiver is on when blocked or in malfunction
		The yellow LED in receiver is on and red LED in receiver off without blocking.

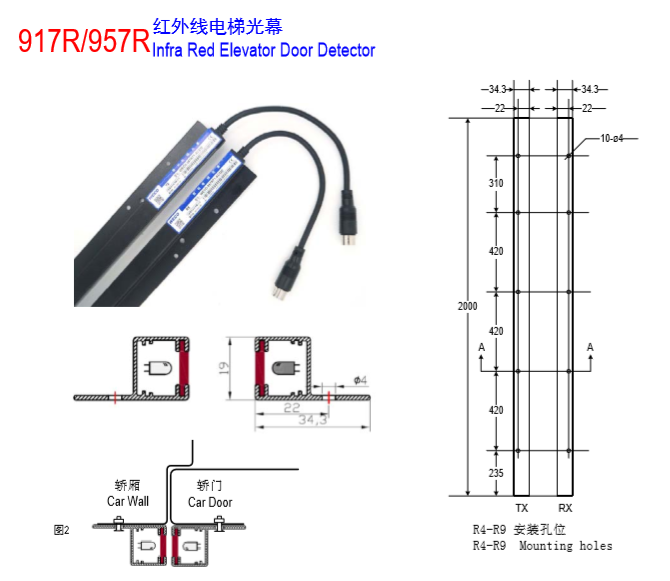

Dimension & Installation holes

Integrated Photocell Door Sensor Full Height 19mm Thickness 2000MM Length

Package

Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

What's More?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 15 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
